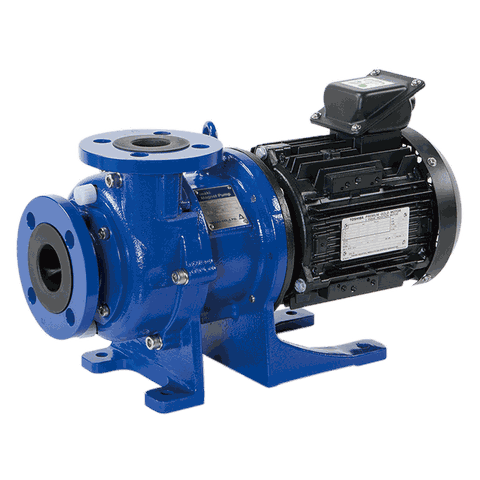

Bơm Iwaki Seri MXM

Bơm tự mồi đa năng MXM với độ bền được nâng cao trong điều kiện vận hành đặc biệt. Cấu trúc tự giải nhiệt giúp tăng khả năng chạy khô và hút kém.

Motor bơm với nhiều tiêu chuẩn đáp ứng cho từng phạm vi ứng dụng vận chuyển hóa chất khác nhau.

Bộ phận tiếp xúc chất lỏng của bơm dễ dàng được tháo rời khỏi động cơ nhờ cấu tạo giá đỡ phía sau. Số lượng phụ kiện ít nên rất đơn giản trong vấn đề bảo trì.

Lưu ý khi chọn bơm

(1) The performance curves in this catalogue represent the data measured using clear water at 20 °C.

(2) Choose the pump model suited to the liquid gravity.

Make sure that the motor output is ten percect higher than theoretically required.

Shaft power (Sp) × liquid gravity × 1.1 < Motor output

(Note)   The shaft power (Sp) increases in proportion to the liquid gravity.

As the viscosity rises, the shaft power is higher while the head and the discharge are lower. The power and the performance need to be adjusted.

(3) No magnetic drive pump supports continuous closed running. Be sure to ensure the mininum flow volume.

• Minimum flow volume

  MXM22/44                                          : 10 L/min.

  MXM54 Impeller range 1, 2 and 3      : 20 L/min.

                       Impeller range 4                    : 50 L/min.

(4) The pressure resistance of the pump is as follows.

Be sure to ensure that the internal pressure of the pump does not exceed the value specified below.

• Standard model -10 °C to 90 °C (without rear casing cover)

            MXM22: 0.2MPa, MXM44: 0.3MPa, MXM54: 0.45MPa

• High temperature version -10 °C to 105 °C (with rear casing cover)

            : 0.7MPa

(5) FF material models

• Liquid should be 1m Pa·s (cP) or more.

• HQ performance is somewhat different from CF/KK models.If you need to know the detail, please contact with us.

(6) Deliberate prolonged dry running or entrained air operation is not recommended.

• The CF type has a degree of tolerance to dry running and operation with entrained air in the liquid.

• The KK type has the same degree of tolerance as the CF type under operation with entrained air in the liquid, but not allowed to run dry.

• The FF type is not allowed to run dry or operation with entrained air.
